The Playout row of dfine.io Studio brings a picture back out of dfine.io. Studio receives a Review session or a Streaming Classic stream and puts it on a Blackmagic DeckLink card, from where it goes over SDI to your reference monitor. You need dfine.io Studio, a Blackmagic DeckLink card with the Desktop Video driver, and the link you were sent.
Studio either streams or plays out. A running stream locks the row: Stop the stream to switch to Playout.
Use the invitation link to the room you were sent, and its password if the access has one.

​
2. Connect

1

Put Playout on air

Click the Playout row. The right panel turns into Playout.
2

Pick where it comes from

Under Receive from, pick dfine.io Review or dfine.io Streaming Classic.
3

Paste the link

For Review, paste the whole invitation link into Meeting link, enter Your Name and the Password if there is one. For Streaming Classic, paste the playout link into Playout link.

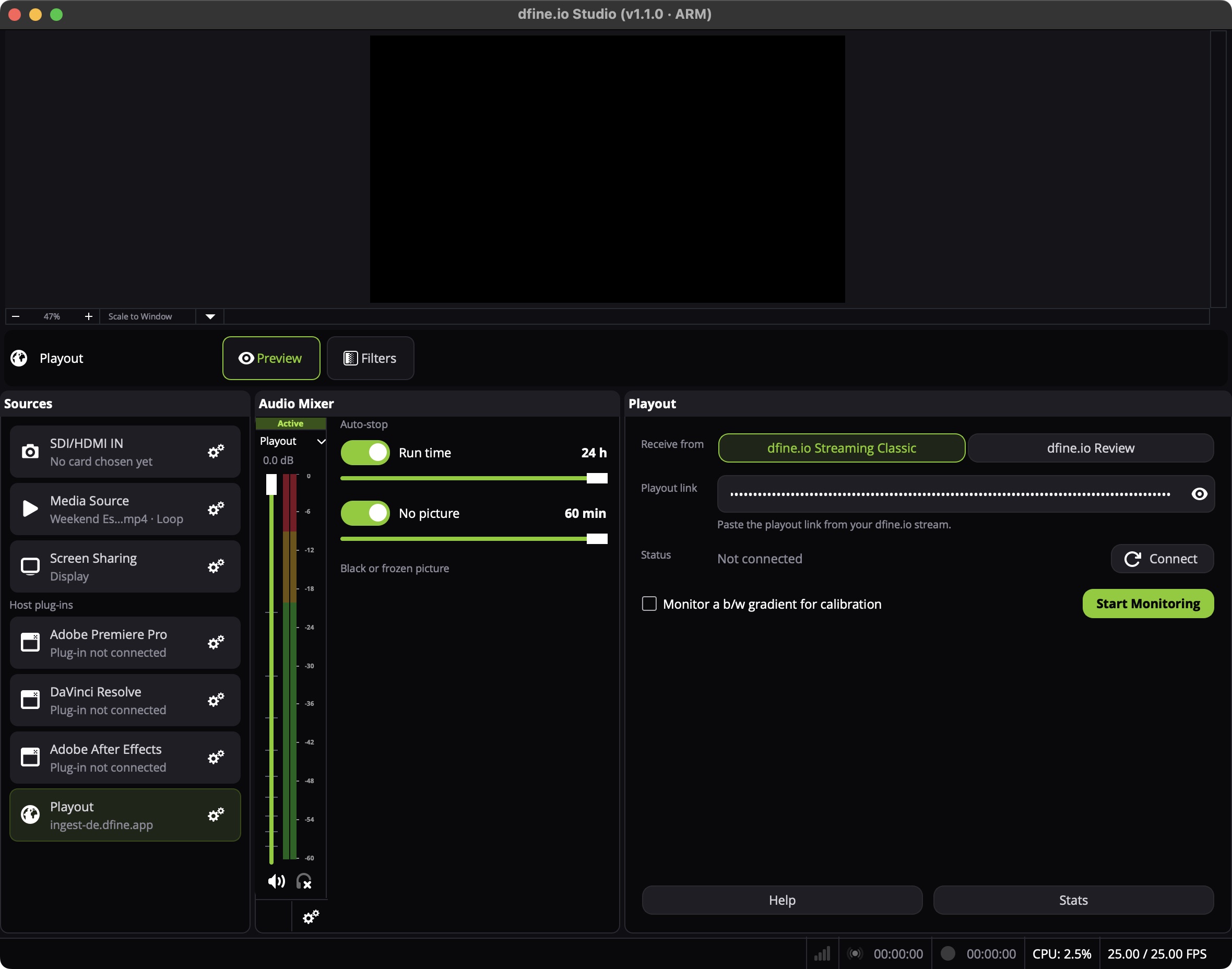

The Studio Playout panel receiving from dfine.io Streaming Classic with a playout link
4

Connect

Click Connect. For Review, pick what you want to see under Source. ↻ refreshes the list when someone joins later. For Streaming Classic, the status turns to Live once the stream runs.

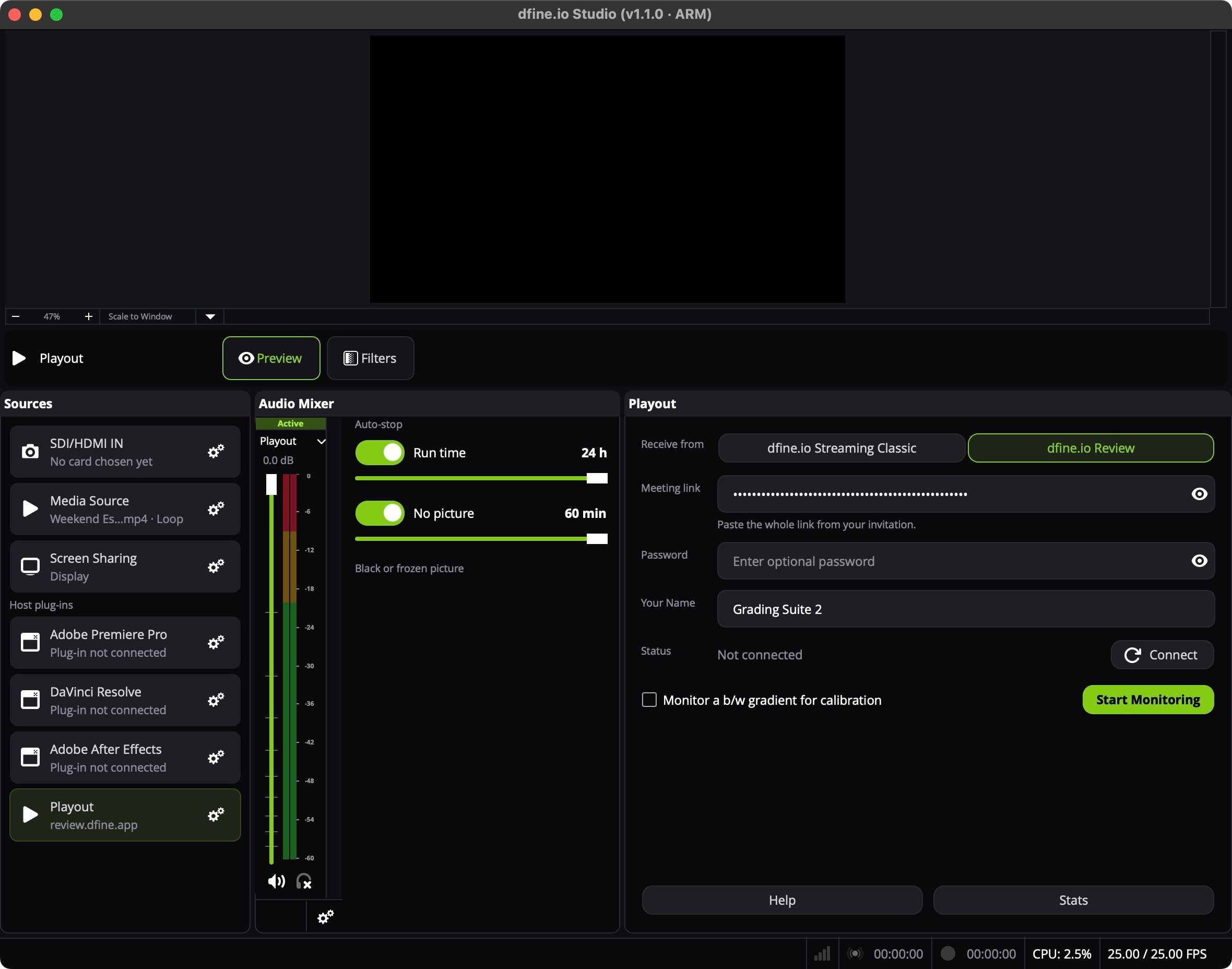

The Playout panel receiving from dfine.io Review with a meeting link and Your Name
In Review, Studio joins the room as a participant under the name you entered, so everyone can see that you watch.

​
3. Send it to the card

Click the gear on the Playout row. Under SDI Output, pick the Device, the Mode your monitor expects and the Color Range, then click Start Monitoring. Stop Monitoring ends it. Stop the output when you are done.

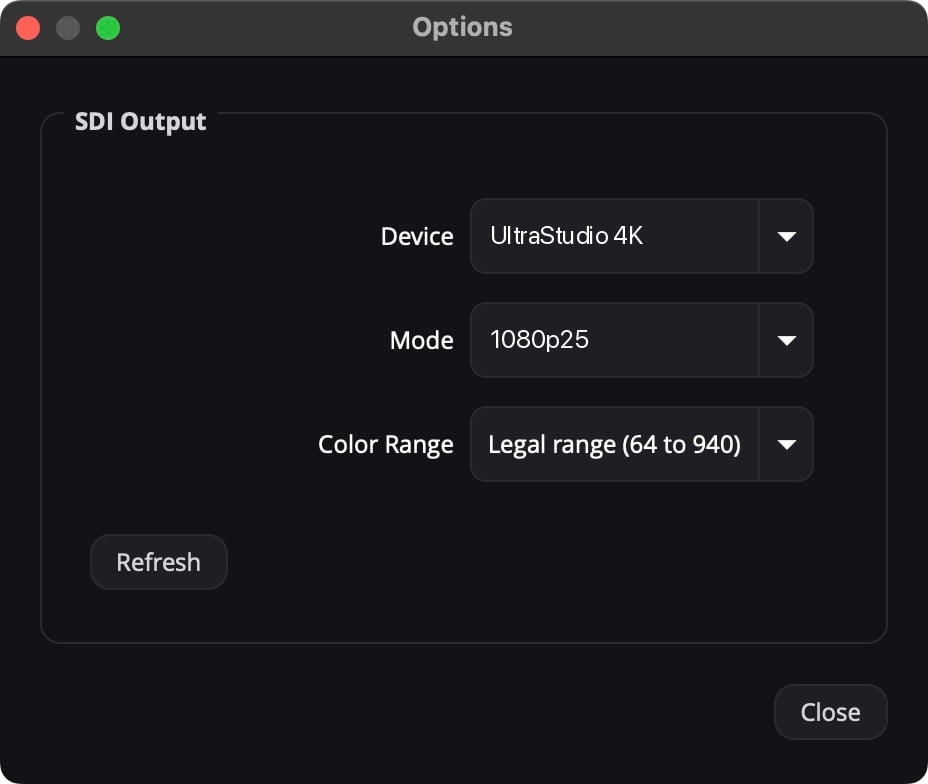

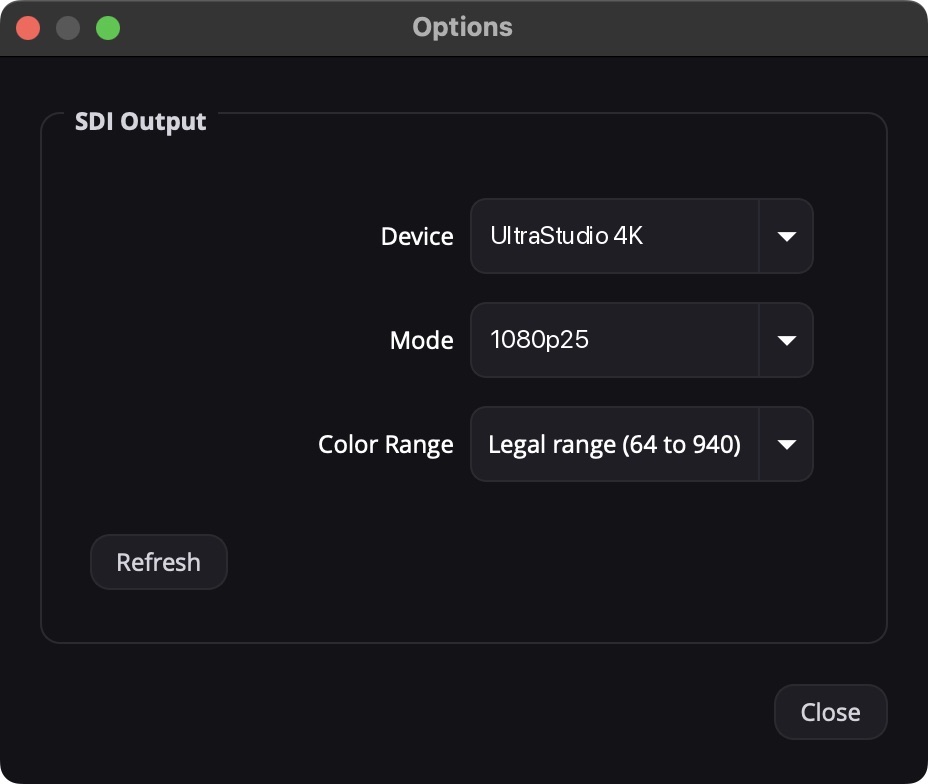

The SDI Output options with device, mode and colour range
Legal range (64 to 940) suits almost every monitor. Pick Full range (0 to 1023) only when the monitor expects full range, otherwise blacks lift or highlights clip.
Studio holds the picture back a little to keep it smooth, and a Streaming Classic stream adds about three to four seconds on the SDI side. Use the reference monitor for colour and image quality, and keep the browser open when exact timing matters.

​
Check the monitor chain

Tick Monitor a b/w gradient for calibration and click Start Monitoring. The card sends a black-to-white gradient instead of the session, so you can check cabling and range before a session.

​
Status messages

The stream is not live yet. The Classic stream has not started. Studio connects as soon as it does. The server refused the link. Copy it again from dfine.io. The link changed or was switched off. Connection lost. Reconnecting… Studio retries on its own. No card selected. Pick one under Options. Open the gear and pick a device under SDI Output.

Get Blackmagic Desktop Video

The driver for DeckLink cards.
